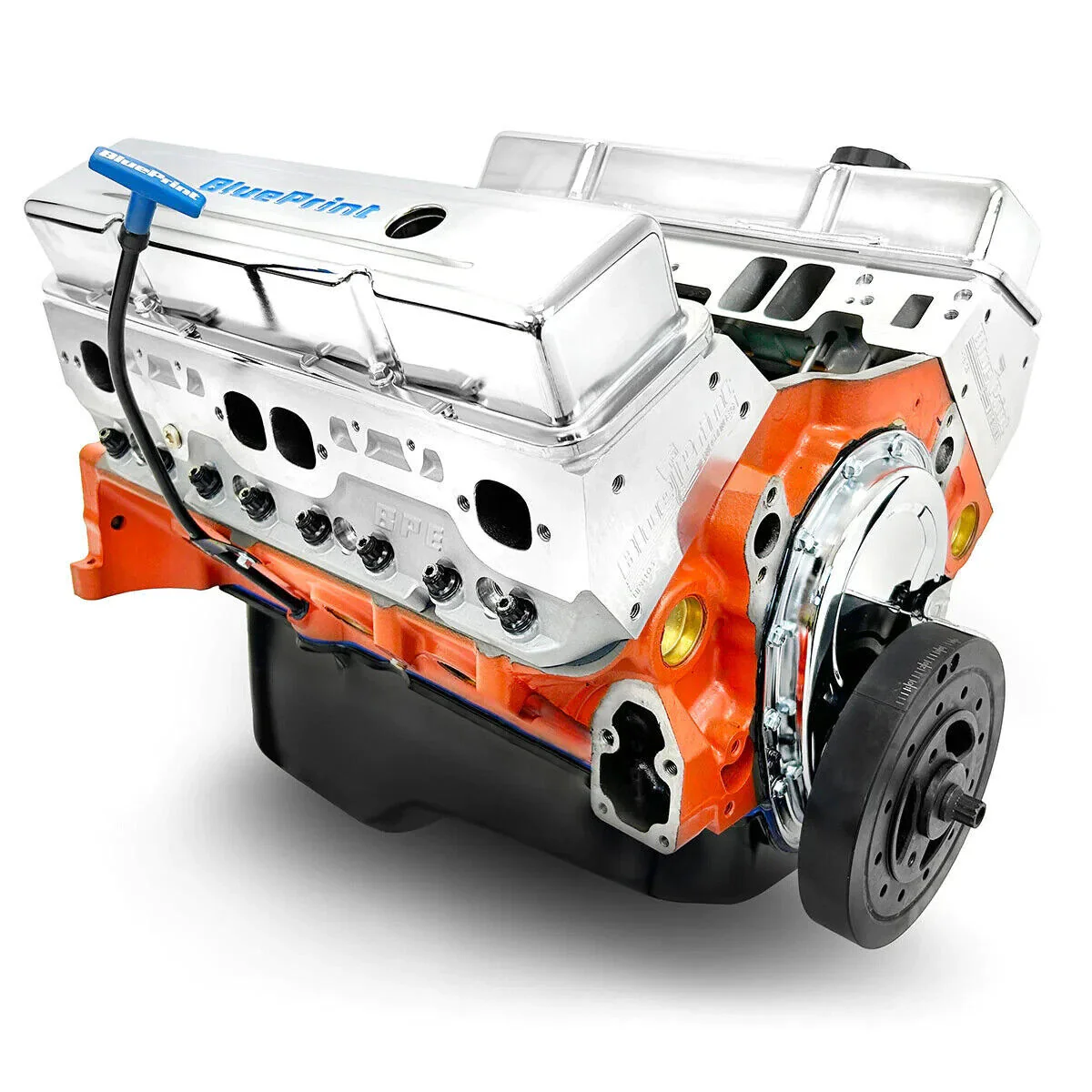

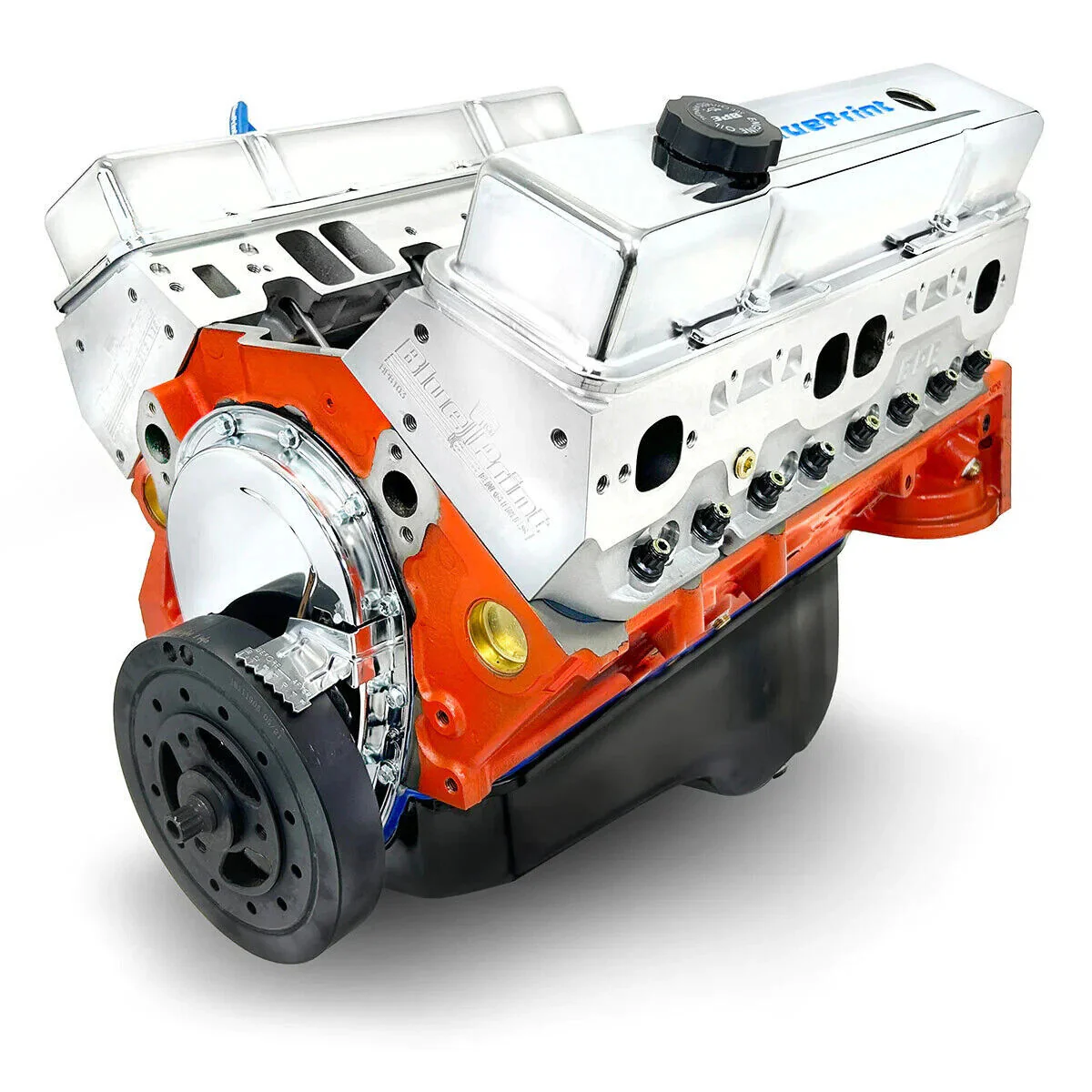

BluePrint Engines Chev 383 Power Adder Long Engine 445hp # BP38317CT1
GM SB COMPATIBLE 383 C.I. POWER ADDER ENGINE - 445 HP - LONG BLOCK
HP Torque:445 HP / 463 FT. LBS
Cylinder Heads:BluePrint Engines Aluminum Cylinder Heads
Compression Ratio:8.9:1
Camshaft:Hydraulic Roller Cam - .536 Intake / .555 Exhaust Lift and 224 Intake / 236 Exhaust Duration @ .050 - 1130 LSA
Pistons:Forged
Crankshaft:Steel Crank - 3.750" Stroke and 5.700" Rods
DESCRIPTION:
HP Torque: 445 HP / 463 FT LBS
Compression Ratio: 8.9:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000"
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft
3.750" Stroke
Forged I-beam 5.700" connecting rods
Forged Pistons
Internal Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Roller Cam
.536 Intake / .555 Exhaust
224 Intake / 236 Exhaust Duration @ .050 - 113 Degree Lobe Separation
IGNITION TIMING:
Initial timing - 10-16 0 and Total timing 32-34 0
ALSO INCLUDES:
Oil Pan
Valve Covers
Timing Cover
Power Adder engine
Built with a dual keyway crank
Harmonic Balancer
NOTES:
Power Adder engine.
Recommended Oil: BPP710 BluePrint Crate Engine Break In Oil
Recommended Fuel: 91 Octane
The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
Not for EGR
