BluePrint Engines 454 Cruiser Crate Engine | Big Block Chevy 454 Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

• HP & Torque: 460 HP / 479 FT LBS
  Compression Ratio: 9.85 to 1
  Aluminum Heads
  Hydraulic Roller Cam
  Forged Crank
  Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block, 454 BBC
  Manufactured and Machined in the USA!
  4-Bolt Main
  4.250" Bore
  1-Piece Rear Main Seal
  Mech fuel pump provision: Yes
  Standard Deck

ROTATING ASSEMBLY:

• New BluePrint Forged Crankshaft
  4.000" Stroke 4.250" Bore
  6.135" connecting rods w/ 150,000 psi bolts
  Hypereutectic pistons
  External

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - PS8013
  119cc chamber
  2.30" intake/1.88" exhaust valves
  316cc intake/124cc exhaust runners
• Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
• Must verify header/exhaust clearance

CAM SPECS:

• Cam Type: Roller
  .501 Intake .510 Exhaust
  216 Intake / 228 Exhaust duration
  @ .050 - 112 degree lobe separation

IGNITION TIMING:

• Initial timing - 10-160 and Total timing 32-340

ALSO INCLUDES:

• Intake Manifold single plane, satin aluminum
  850cfm Carburetor
  Valve covers, oil pan and timing cover

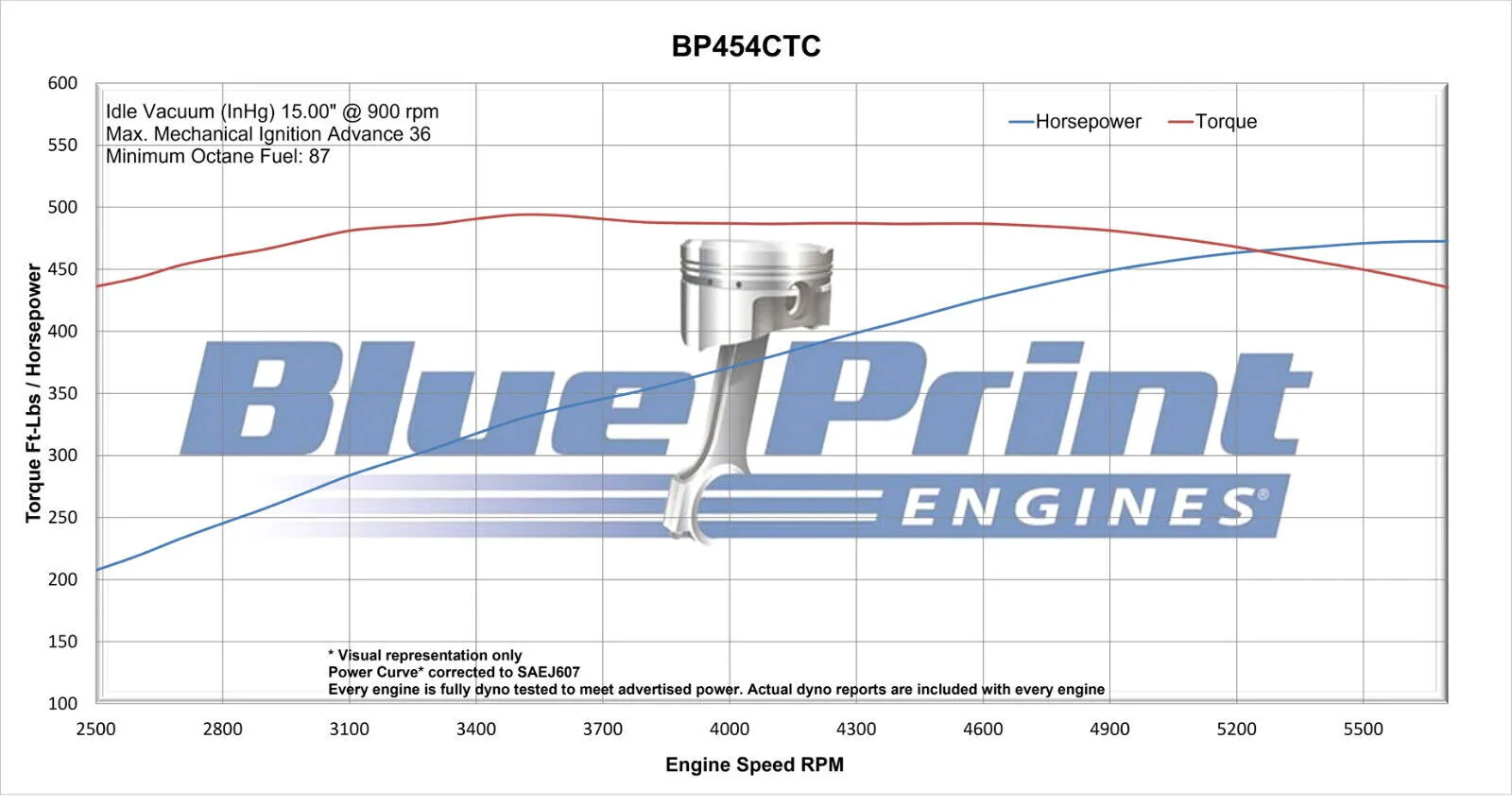

  Dyno test results shipped with engine
