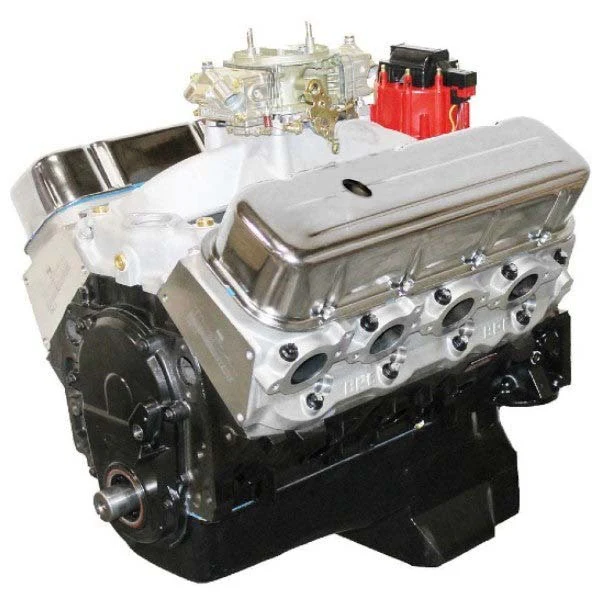

BluePrint Engines Chev 496, 600hp Dressed Fuel Injected Engine # BP4967CTF
- HP & Torque: 600 HP / 568 FT LBS
Compression Ratio: 10.1 to 1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Hypereutectic Pistons
BLOCK:
- NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA!
4-Bolt Main
4.250" Stroke, Bored .060" over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
4.250" Stroke
OEM type 6.135" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads - PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners - Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
- Must verify header/exhaust clearance
CAM SPECS:
- Cam Type: Roller
.647 Intake .647 Exhaust
248 Intake / 254 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
- 10-160 initial and total timing 32-340 at 3500 RPM
ALSO INCLUDES:
- Intake Manifold single plane, satin aluminum
- Sniper EFI System
- Valve covers, oil pan and timing cover

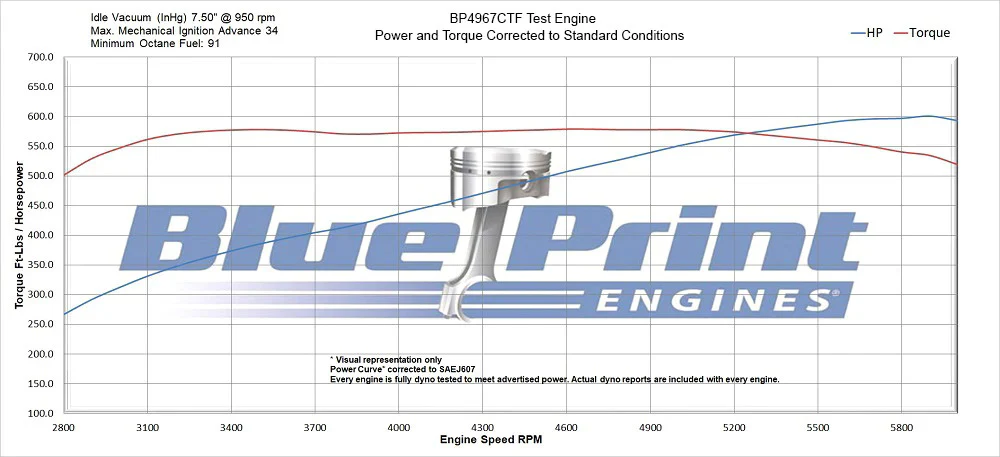

Dyno test results shipped with engine
